Dura Deck Aluminium Free-Drain 18mm
Dura Deck Aluminium Decking Range
Balcony/terrace free draining decking profile with A2 fire rating
The ideal replacement decking material for degraded or non-compliant timber on balconies, low level terraces and walkways or new build cassette balconies less than 6 sqm. (Patent No GB 2 592 402)
Full cell construction with built-in soffit
A2fl-s1 Fire Rating
850mm centre-to-centre span capability
V-groove surface
Free-draining
Cool-touch finish
25 year warranty
Fully recyclable at end of life
Why choose our Aluminium Decking with Free-Drain
Particularly efficient for use with ‘slide-on’ cassette balconies. Final decking boards slide in as balcony is lifted into place
Improves speed, quality and safety of decking installation process versus competitor products
Reduces labour costs as is compatible with off-site manufacturing methods
Rapid free-draining helps prevent flooding and overspill by draining water (where permitted).
Finished ceiling beneath means no additional soffit costs
Fire tested in conjunction with correct flooring test and installation method on a horizontal plane, for absolute peace of mind.
Double sided cell construction avoids twisting and warping during transportation and installation
Using NBS Chorus to specify your project?
Click below, navigate to an existing session and paste the product into your chosen specification.Key Benefits
Safe and Cost Effective
Dura Deck Aluminium SD has been developed in conjunction with leading developers, contractors and balcony manufacturers. It provides a safe and cost-effective decking solution for balconies and high-rise terraces, and for any project that requires an A2 fire rating.
Suited to Off-Site Manufacturing Techniques
Spanning up to 600mm between supports on a 2kN distributed load, the decking boards feature a grooved surface to aid rainwater dispersal and are particularly suited for use with ‘slide-on‘ cassette balconies. The majority of the decking boards can be installed during off-site manufacture, with the remaining boards sliding in as the balcony is lifted into place, improving the speed, quality and safety of the decking installation process, and reducing labour costs on-site.
Free Draining
The innovative Dura Deck Aluminium SD integrates seamlessly with our aluminium joist and pedestal system to meet even the lowest of build-up heights, and our proprietary fixing clip can be used to create a free draining balcony installation.
Fire Tested to the Correct Methodology
Achieving an A2fl-s1 Fire Rating, Dura Deck Aluminium’s fire testing has been conducted in conjunction with the correct flooring test and installation method on a horizontal plane, for absolute peace of mind.
Advanced Structural Performance
The lightweight nature of Dura Deck Aluminium reduces the structural load on buildings. The products have undergone stringent testing to guarantee their effectiveness and performance under both point load and crowd loading in accordance with relevant building codes. Our published data meets the requirements of the most recent 2.0kN point load @ 0.5% deflection (L/200) BS 6399-1:1996) standard, rather than the now obsolete 4kn criteria referenced by many others.
Warranty
The Dura Deck Aluminium range has a powder coated finish and comes with a 25 year warranty. Please refer to our supporting Technical Manual for full warranty conditions. You can activate your warranty within 30 day.
Colours & Trims
Our Aluminium Decking Products are available in 3 attractive, contemporary colours that look great in any commercial or residential environment.
Anthracite – RAL 7043
Cedar – RAL 1019
Mist – RAL 7001
Dura Deck Aluminium Free-Drain 18mm has a range of intelligently designed trims and accessories so you can be sure of a simple and efficient way to start, install and finish your aluminium decking balcony or terrace design.
Because our Standard Full Length Main Clip runs the length of the decking board, it provides directional drainage. If your balcony design better suits a free draining solution, our 50mm Main Clips can be used in place of a Standard Full Length Main Clip. The End Closure trim can be used for terminating board ends with a neat finish. If your decking installation scenario requires a board to be trimmed down in length to complete your installation, a Cut Down Clip can be used to support the trimmed edge, giving a professional finish.
Cut Down Clip
Start Stop Clip
Standard Main Clip
End Closure
Decking
Product Guide
Decking & Cladding DOWNLOAD

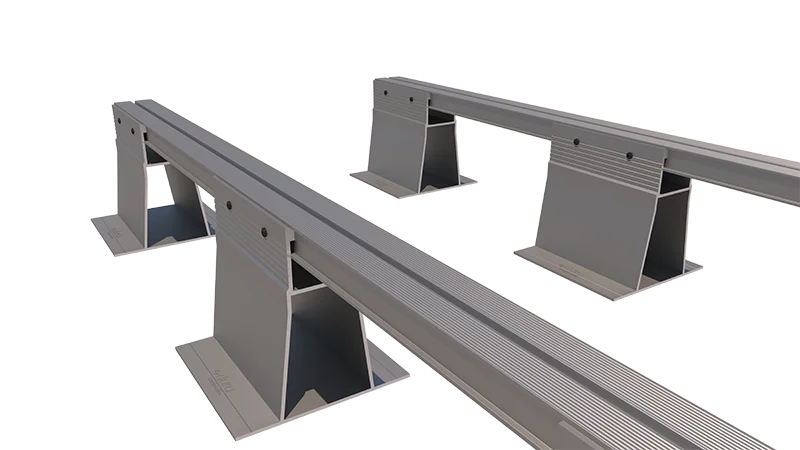

Aluminium Pedestals & Bearers
A2 fire-rated and height-adjustable support pedestals and bearers can be easily combined to suit all project needs. With 8 different heights of pedestals and 3 different heights of bearers, the Dura Composites system provides the most economical substructure combination on the market and is suitable for use as a decking substructure on external balconies, terraces roof gardens, domestic gardens, or for industrial flooring.
This system has been developed to be fully compatible with the latest developments in fire safety legislation and to improve building safety and achieves a Class A2 fire rating to EN13501-1 standards with its standard anthracite powder coated finish and an A1 rated mill finish is also available by special order.
360° Aluminium Decking
Configurator Our powerful interactive tool to customise a decking model that meets specific project requirements.
Need Inspiration & Insight?
Take our look at our insights and guides to get the most out of your Decking Project
Need a fire rated Sub-Structure?
A2 Fire-Rated height-adjustable support Pedestals & Bearers for Aluminium Decking
